CH32V Series Open-Source Hardware Boards
WCH CH32V RISC-V development boards plus the WCH-LinkW Bluetooth debug probe — schematics, PCB and BOM fully open-source (MIT), ready for your own PCBA production.
Why we open-source
open-riscv.com is a RISC-V developer community at heart. Open-sourcing these boards means:
- Anyone can learn from, modify, and mass-produce their own derivatives
- Design issues are found and fixed faster by the community
- Lower the barrier for everyone to start building with RISC-V MCUs
License: MIT. Please keep the "open-riscv" attribution (silkscreen) in derivatives.
Board lineup (5 boards)

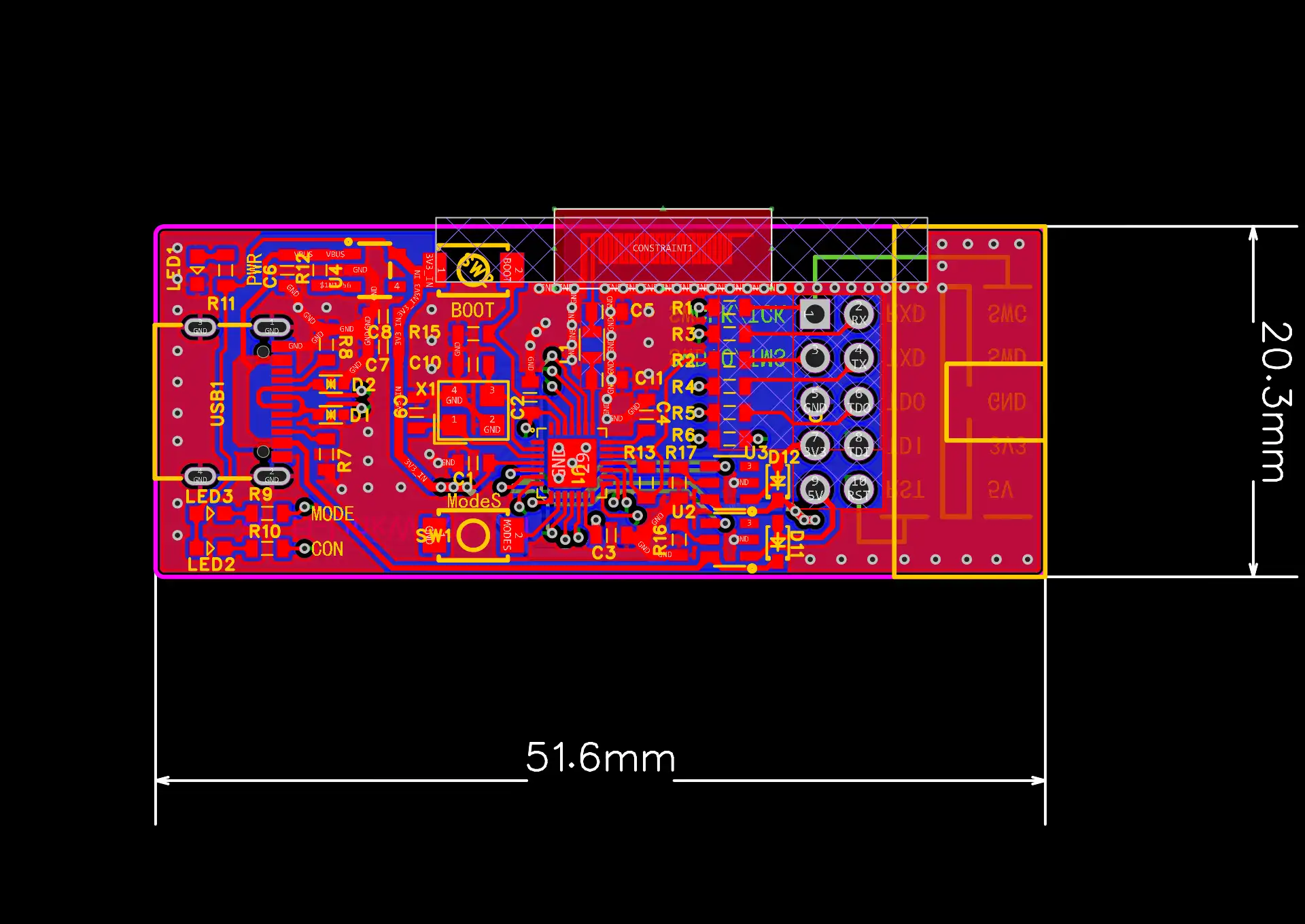

WCH-LinkW-R0-1v1 Bluetooth Debug Probe
51.6 × 20.3 mm (USB stick)
| MCU | CH32V208GBU6 (RISC-V + BLE 5.3) |
|---|---|
| Form | Ultra-compact USB stick with 2.4GHz onboard antenna |
| Schematic | WCH-LinkW-R0-1v1 (CH32V208GBU6) |
Features
- WCH RISC-V MCU CH32V208GBU6 (BLE 5.3)
- USB Type-C + 2.4GHz BLE PCB antenna
- SWD/SWC dual-mode download (DIO/DCLK/GND/NRST)
- 5V→3.3V LDO, BOOT/reset circuit
- 4× status LEDs
- WCH-Link protocol, wireless debugging capable
Typical use
Download/debug probe for all WCH RISC-V MCUs; the Bluetooth variant supports wireless debugging.

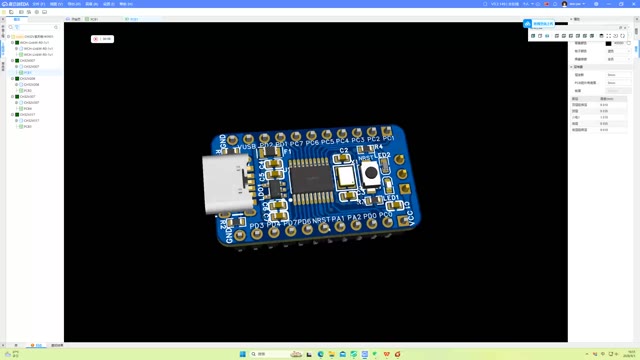

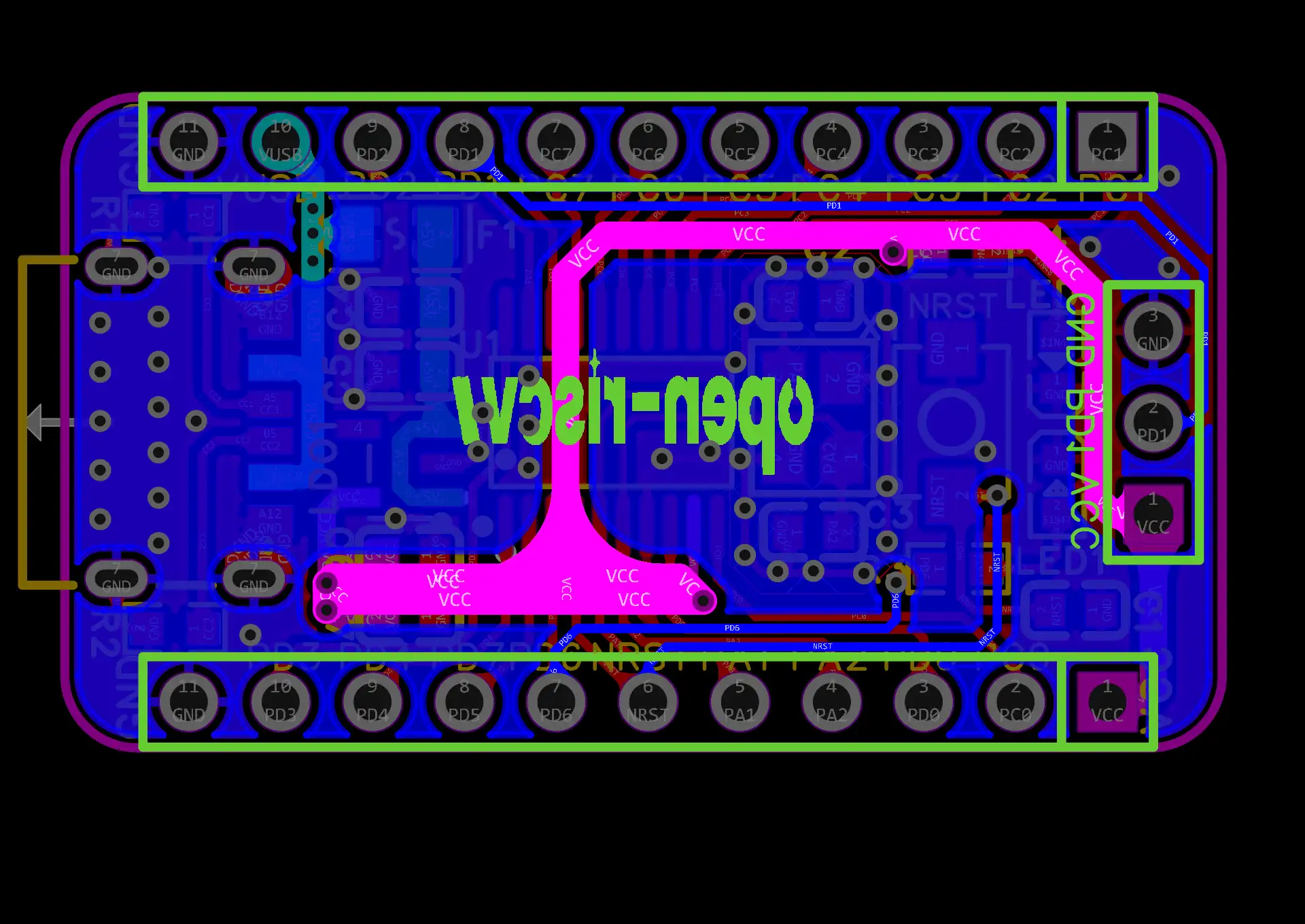

CH32V007 Mini Dev Board
Blue PCB + pin headers
| MCU | CH32V007 (QingKe V2 RISC-V, low-power) |
|---|---|
| Form | Blue PCB with standard 2.54mm pin headers |
| Schematic | CH32V007 (mini dev board) |
Features
- WCH CH32V007 MCU (QingKe V2 RISC-V)
- Standard 2.54mm GPIO headers
- SWD download + USB Type-C
- BOOT0 / NRST buttons
- Multiple status LEDs
Typical use
RISC-V learning, embedded prototyping, low-cost MCU applications.

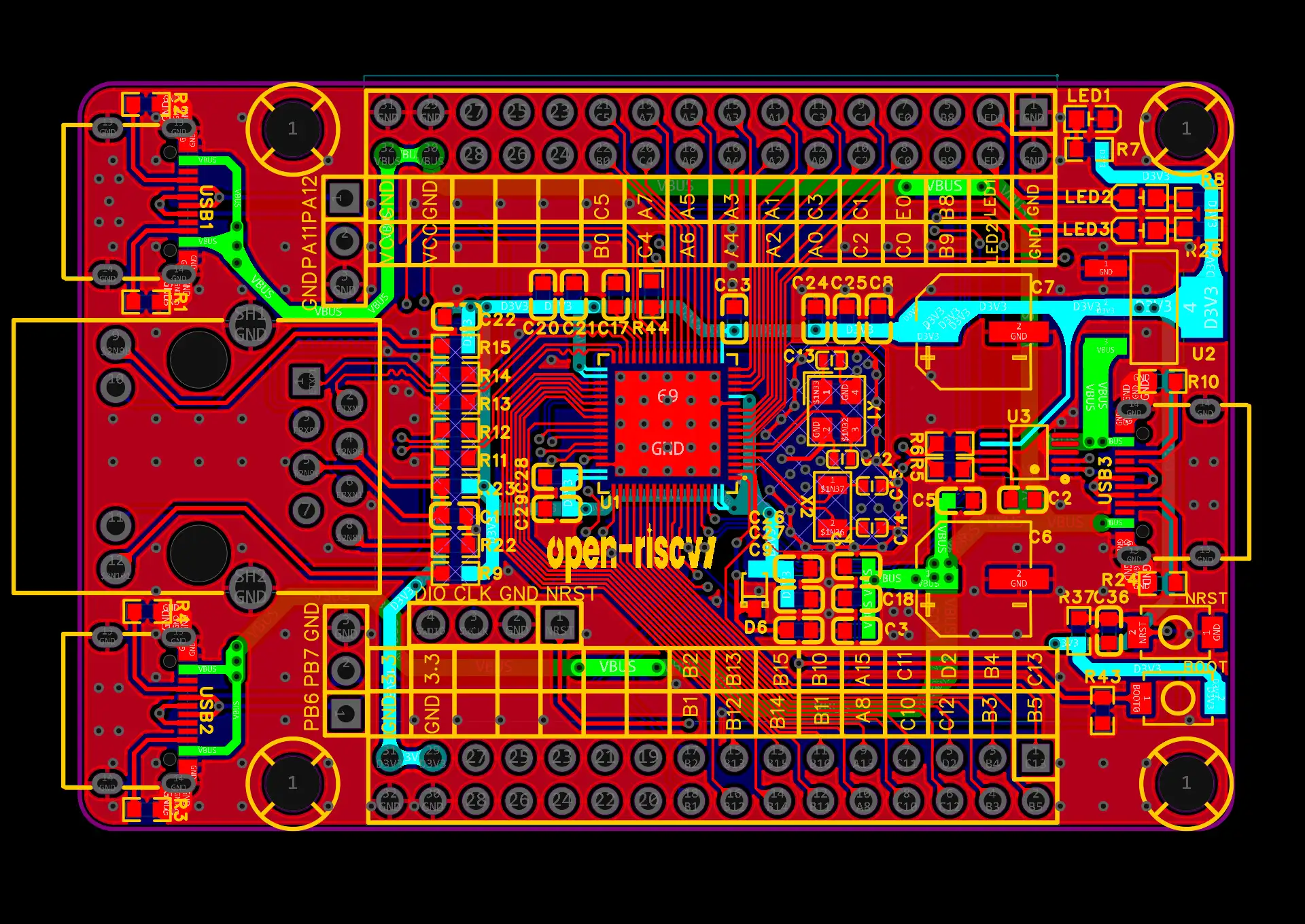

open-riscv CH32V317 Dual-USB Dev Board
≈ 80 × 65 mm
| MCU | CH32V317 (RISC-V, FPU, USBHS + USBFS) |
|---|---|
| Form | Dual Type-C (USB Host + Device), full GPIO headers |
| Schematic | open-riscv CH32V317 DevKit |
Features
- CH32V317 MCU (RISC-V, 144MHz, FPU, USBHS 480Mbps)
- Dual Type-C: USBHS + USBFS
- All PA/PB/PC/PD GPIO on 2.54mm headers
- BOOT0/1, NRST, buttons + LEDs
- open-riscv silkscreen
Typical use
USB host/device development; high-performance RISC-V prototyping.

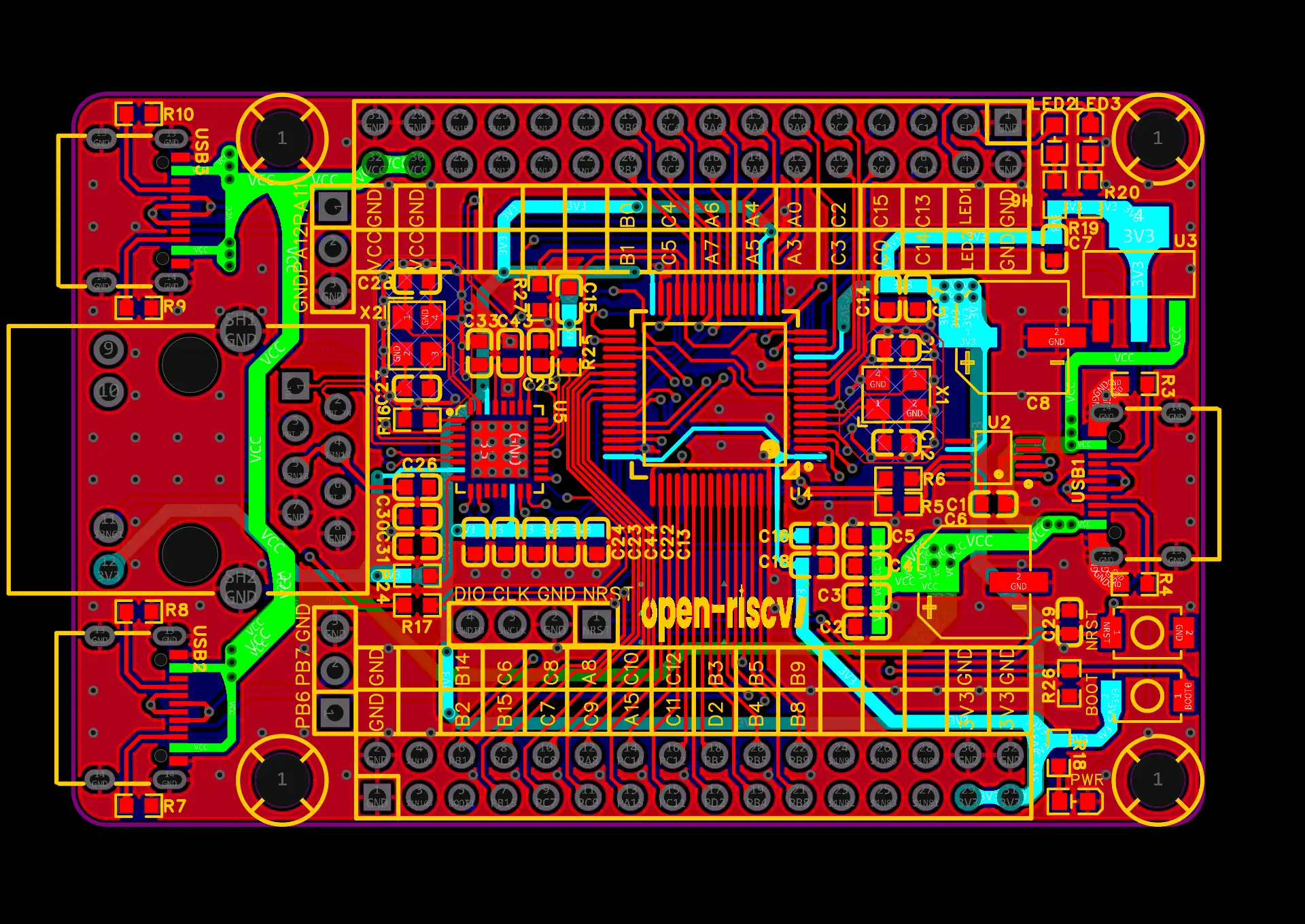

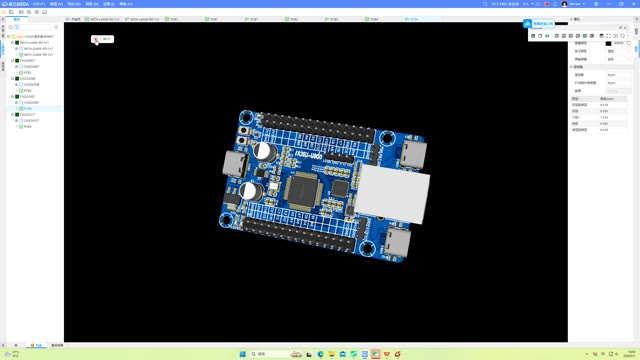

open-riscv CH32V307 Dual-CAN Dev Board
≈ 70 × 60 mm
| MCU | CH32V307VCT6 (RISC-V, FPU, dual CAN) |
|---|---|
| Form | CH340E USB-serial bridge, full GPIO headers |
| Schematic | open-riscv CH32V307 DevKit |
Features
- CH32V307VCT6 MCU (144MHz, FPU)
- USB Type-C + CH340E UART bridge
- Dual CAN interfaces reserved
- All PA/PB GPIO on 2.54mm headers
- BOOT0 / BOOT1 / NRST + 3 LEDs
- open-riscv silkscreen
Typical use
Industrial control, automotive CAN protocol validation.

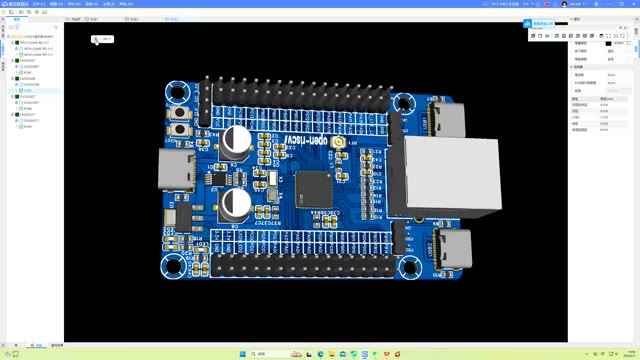

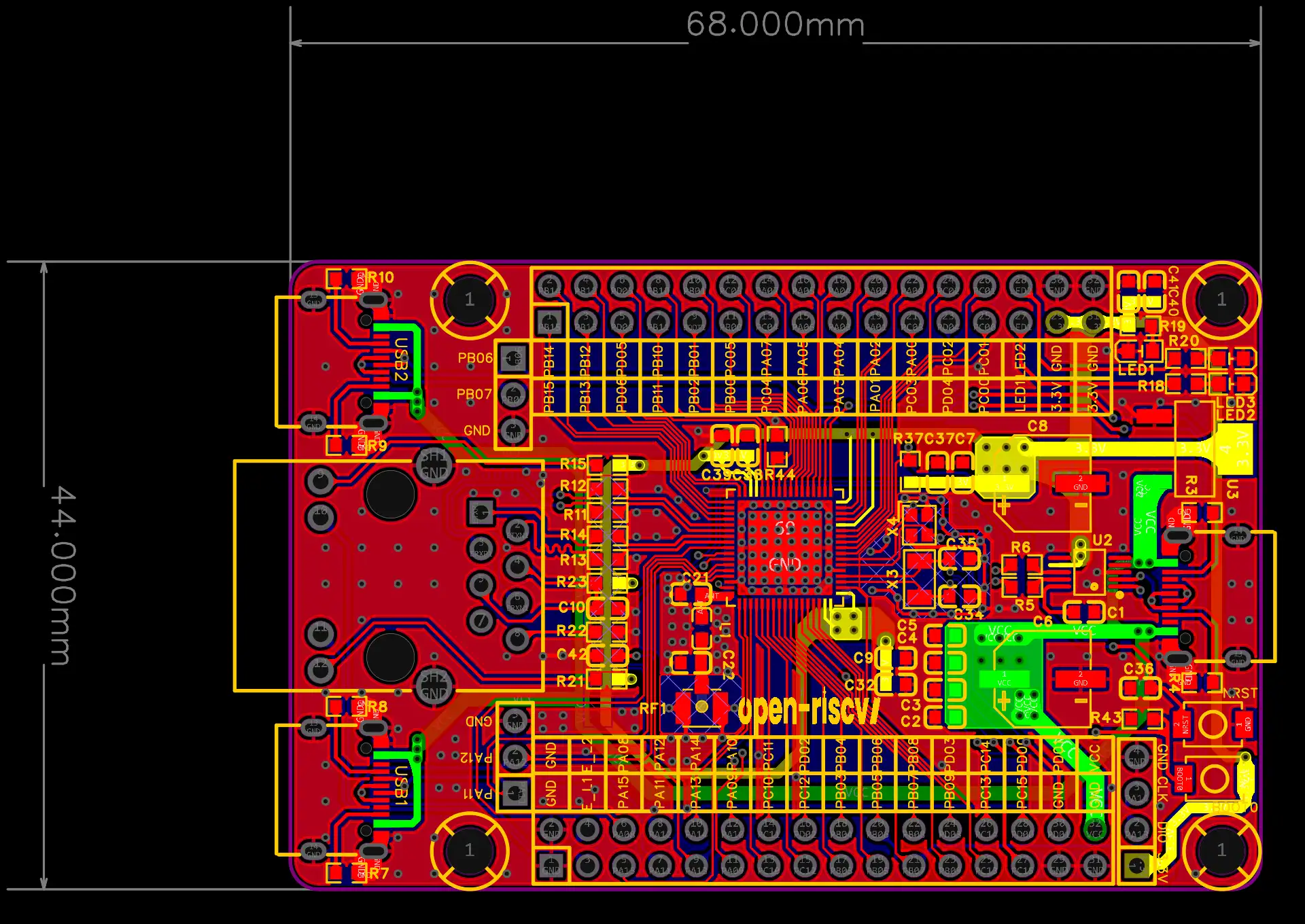

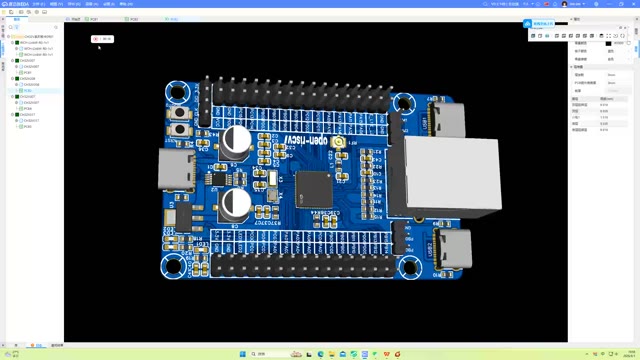

open-riscv CH32V208 Dev Board
68 × 44 mm
| MCU | CH32V208 (RISC-V, 144MHz) |
|---|---|
| Form | Dual Type-C, full GPIO headers |
| Schematic | open-riscv CH32V208 DevKit |
Features
- CH32V208 MCU (RISC-V, 144MHz, USBHS 480Mbps)
- Dual Type-C (USB + UART)
- Full GPIO headers, buttons + LEDs
- open-riscv silkscreen
Typical use
Compact RISC-V development; USB / IoT prototyping.
Downloads
- Complete project package (.epro2, 5MB) — open with JLCEDA (LCEDA Pro)
- Main project file (.epru, 17MB) — 5 PCBs + 5 schematics + libraries
- Preview images (webp) — PCB renders + schematic pages
PCBA & Volume Orders
These boards are available as assembled PCBA. Buy from the shop, or contact contact@open-riscv.com for bulk / customization quotes.
